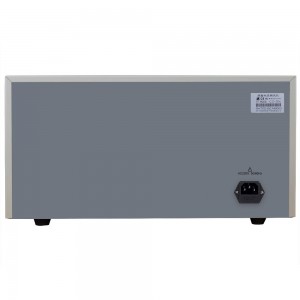

RK2675AM/ RK2675WM/ RK2675B/ RK2675C/ RK2675D/ RK2675E/ RK2675WT Leakage Current Tester


Description

Parameter

Accessories

Product Introduction

The RK2675 Series Leakage Current Tester Is Used For Measuring The Leakage Current Produced By Electrical Power (Or Other Power)Through An Insulating Or Distributed Parameter Impedance, Which Isn’t Relative With The Work,That Is Testing Equipment Which Measure The Insulativity Of Electrical Equipment And The Safety Performance Of Product.
This Product Satisfy The Domestic And International Safety Standards Testing Of GB4706.1-2005, IEC60335.1-2004 And So On,In Compliance With The Requirements Of The JJG848-2007 Regulations Requirement Of Safety Measurement Verification.

Application Area
Components:diode,Triode,High-Voltage Silicon Stack,All Kinds Of Electronic Transformer, Connector Assembly,High Voltage Electrical Equipment.
Household Electric Appliances:TV,Refrigerator,Air Conditioner,Washing Machine,Dryer, Electric Blanket,Charger Etc.
Instruments And Meters:oscilloscope,Signal Generator,DC Power Supply,Switching Power Supply And Other Types Of Machine.
Lighting Appliances:ballast,Road Lights,Stage Lights,Portable Lamps And Other Types Of Lamps.
Electric Heating Appliances:electric Drill,Pistol Drill,Cutting Machine,Grinding Machine,Electric Welding Machine Etc.
Motor: Rotating Electrical Machines, Etc.

Performance Characteristics
Leakage Current Of All Kinds Of Low Voltage Power Equipment Can Be Measured.
Test Voltage,Leakage Current And Test Time All Display Digital.
Leakage Current Value And Test Time Can Be Preset.
The Leakage Current Will Have Sound And Light Alarm When Overrun.
Test Phase Can Be Converted Automatically/Manually.
Test Time,Alarm Value Can Be Set Continuously.




  • Previous:
  • Next:

  • Parameter

    RK2675AM

    RK2675WM

    RK2675B

    RK2675C

    RK2675D

    RK2675E

    RK2675WT

    Type















    Output Voltage

    0~250V

    50~450V

    Output Current

    0.03~2mA/20mA

    0.2~2mA/2mA~20mA

    Test Resistance

    ±5%

    ±5%

    Test Accuracy

    0.0s-999s

    0.0=Continuous Test

               1-99s ±1%

    0. 1s~999s 0.0=Continuous Test

     Transformer Capacity

    500W

    None

    1000W

    2000W

    3000W

    5000W

    None

    Interface Of PLC

           Optional

                    NO

          Optional

    Power Requirments

    220V±10%  50Hz±5%

    Working Environment

    0℃~40℃≤85%RH

    Model Picture Type
    Power Cord 20150624153924252425 Standard
    Warranty Card 20150624154012341234 Standard
    Factory Calibration Certificate 20150624154163096309 Standard
    Manual     2015062415430772772 Standard
